GRINDAMAX™ V3
GRINDAMAXTM V3 is a vanadium-based grade which has been developed to bridge the gap between conventional & PM high speed steels in terms of both performance and grindability. Its chemistry is a very effective combination of alloying elements allowing high wear resistance and excellent toughness .
Chemical composition
| C | Cr | Mo | W | Co | V |
|---|---|---|---|---|---|
| 1.2 | 3.9 | 5.2 | 7 | - | 2.7 |
Standards
- Europe : HS 7-5-3
- Germany : 1.3347
Properties
Machinability
Wear Resistance
Toughness
Hot hardness
Grindability

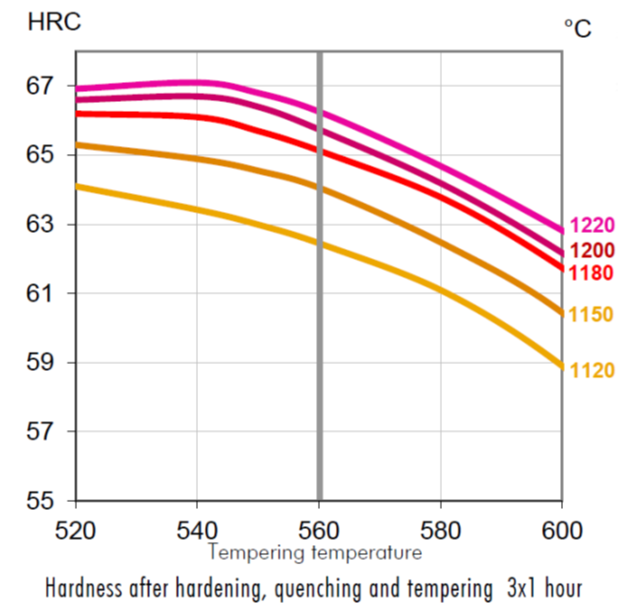

Heat treatment
Delivered Hardness
- Soft annealed : 265 HB
- Cold drawn : 290 HB
- Cold rolled : 290 HB
Characteristics
GRINDAMAXTM V3 can be worked as follows:
- machining (grinding, turning, milling)
- polishing
- hot forming
- electrical discharge machining
- welding (special procedure including preheating and filler materials of base material composition).
Applications
-
-
Round bars Ø 0.6 to 410 mm
-
