ASP®2011
ASP®2011 is a high vanadium grade for wear applications.
Chemical composition
| C | Cr | Mo | W | Co | V |
|---|---|---|---|---|---|
| 2.45 | 5.25 | 1.3 | - | - | 9.75 |
Standards
- USA : AISI A11
- AMS : 6559
Properties
Machinability
Wear Resistance
Toughness
Hot hardness
Grindability

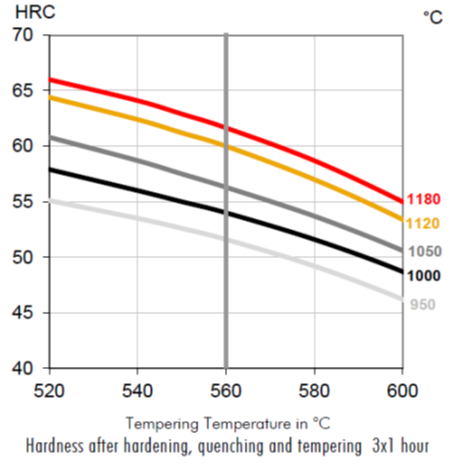

Heat treatment
Delivered Hardness
- Soft annealed : 280 HB
- Cold drawn : 305 HB
- Cold rolled : 305 HB
Characteristics
ASP®2011 can be worked as follows
- machining (grinding, turning, milling
- polishing
- hot forming
- electrical discharge machining
- welding (special procedure including preheating and filler materials of base material composition).
-
-
-
Round bars Ø 0.6 to 410 mm
-
-
