E M1
E M1 is molybdenum-based grade which has a good machinability, a good performance and is used for many applications.
Chemical composition
| C | Cr | Mo | W | Co | V |
|---|---|---|---|---|---|
| 0.83 | 3.8 | 8.5 | 1.8 | - | 1.2 |
Standards
- Europe : HS 2-9-1
- Germany : 1.3346
- USA : AISI M1
Properties
Machinability
Wear Resistance
Toughness
Hot hardness
Grindability

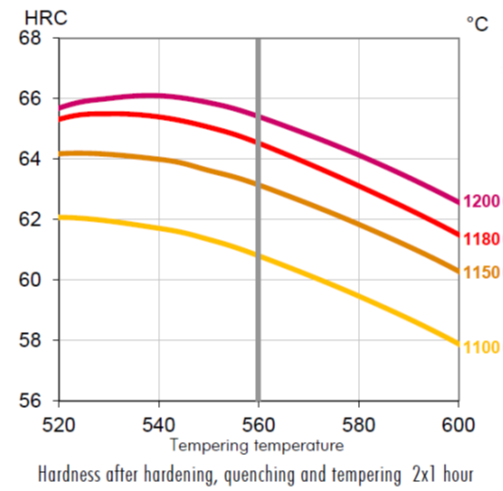

Heat treatment
Delivered Hardness
- Soft annealed : 250 HB
- Cold drawn : 275 HB
- Cold rolled : 275 HB
Characteristics
E M1 can be worked as follows:
- machining (grinding, turning, milling)
- polishing
- hot forming
- electrical discharge machining
- welding (special procedure including preheating and filler materials of base material composition).
-
-
-
Round bars Ø 0.6 to 410 mm
-
-
