E M50
E M50 is a low alloyed high speed steel
Chemical composition
| C | Cr | Mo | W | Co | V |
|---|---|---|---|---|---|
| 0.84 | 4.0 | 4.2 | - | - | 1.1 |
Standards
- Europe : HS 0-4-1
- Germany : 1.3325
- USA : AISI M50
Properties
Machinability
Wear Resistance
Toughness
Hot hardness
Grindability

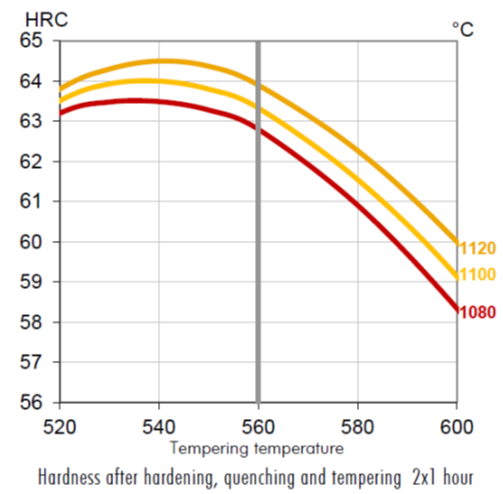

Heat treatment
Delivered Hardness
- Soft annealed : 225 HB
- Cold drawn : 250 HB
- Cold rolled : 250 HB
Characteristics
E M50 can be worked as follows:
- machining (grinding, turning, milling)
- polishing
- hot forming
- electrical discharge machining
- welding (special procedure including preheating and filler materials of base material composition).
Applications
-
-
Round bars Ø 0.6 to 410 mm
-
